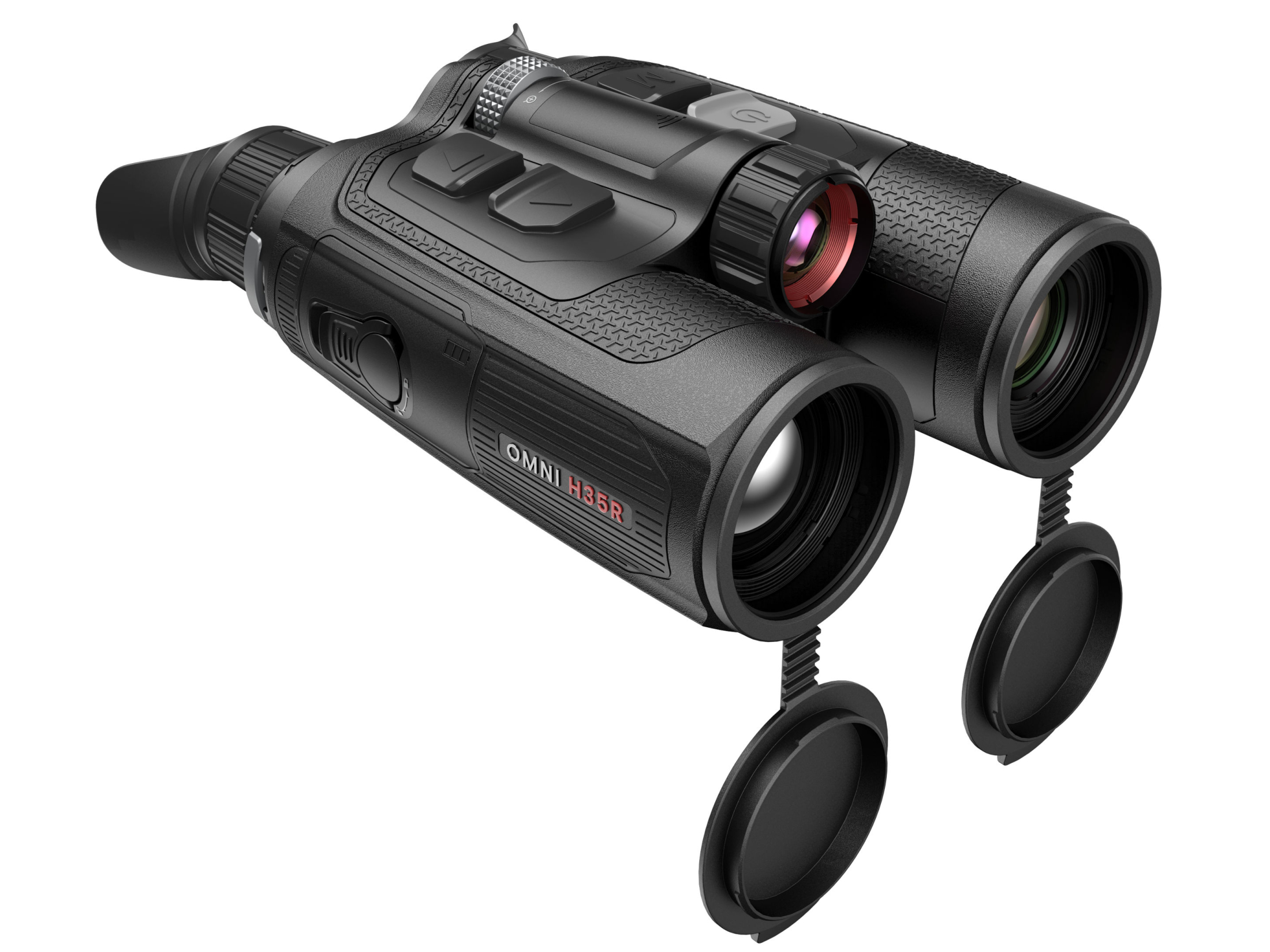

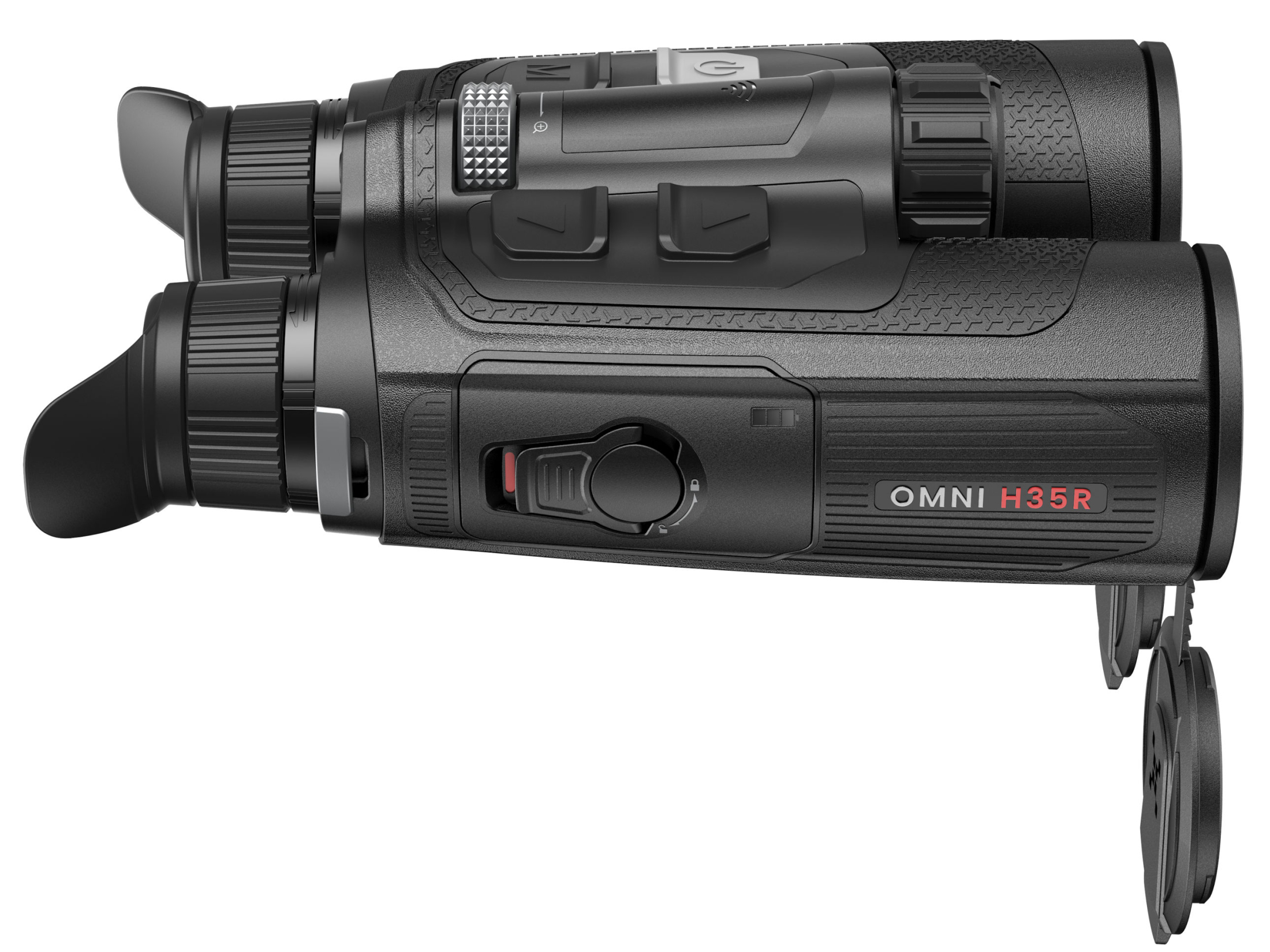

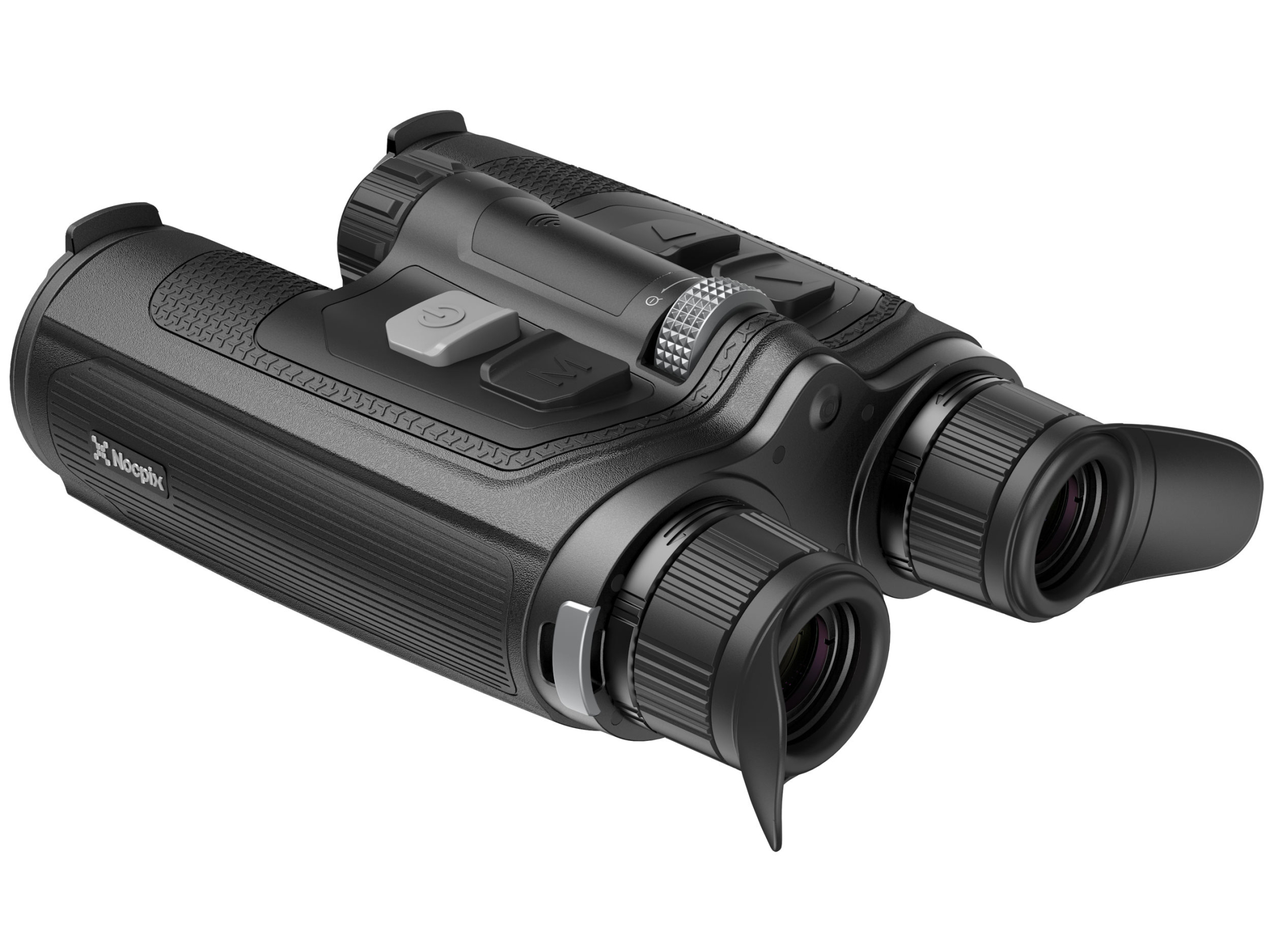

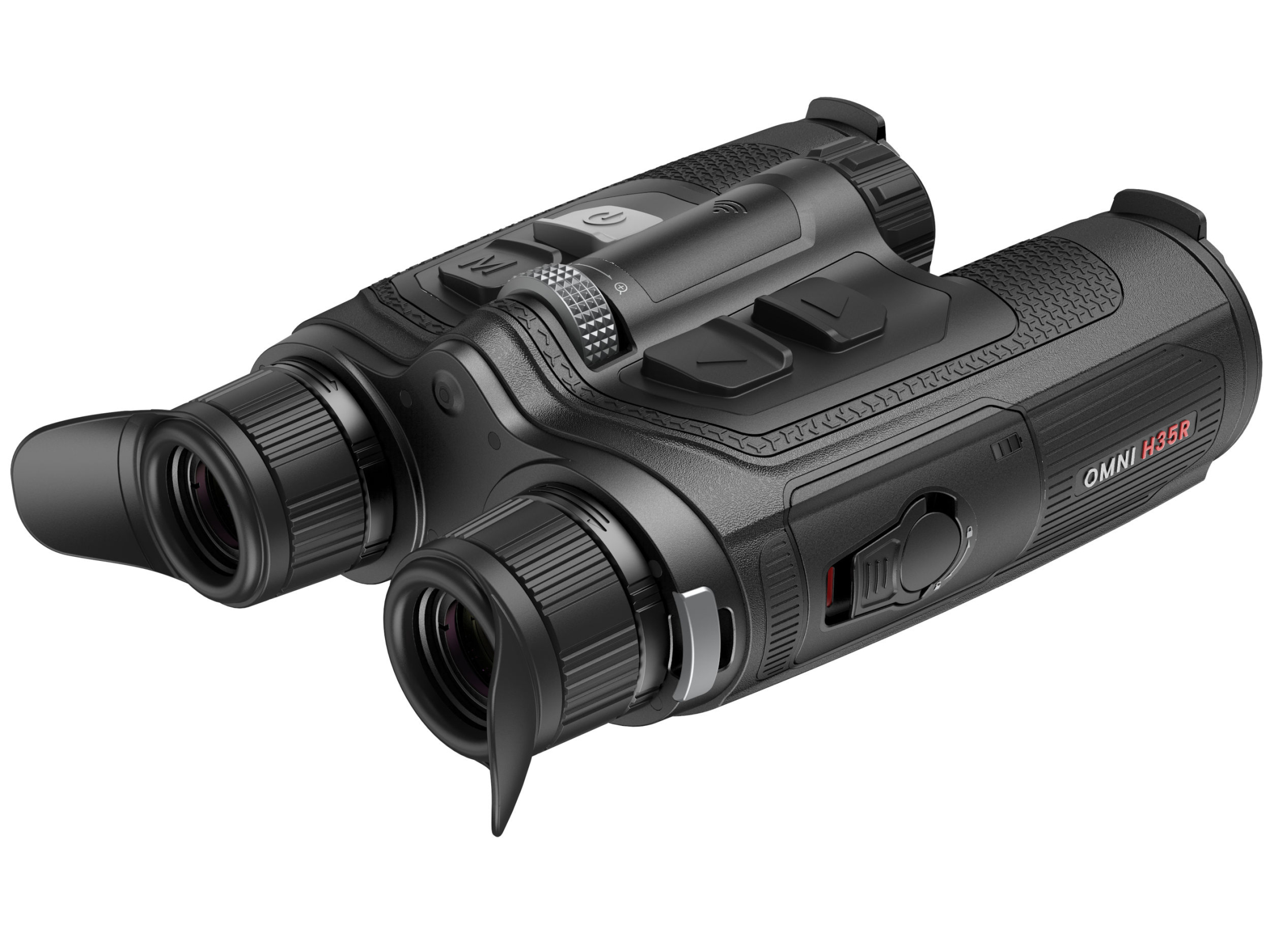

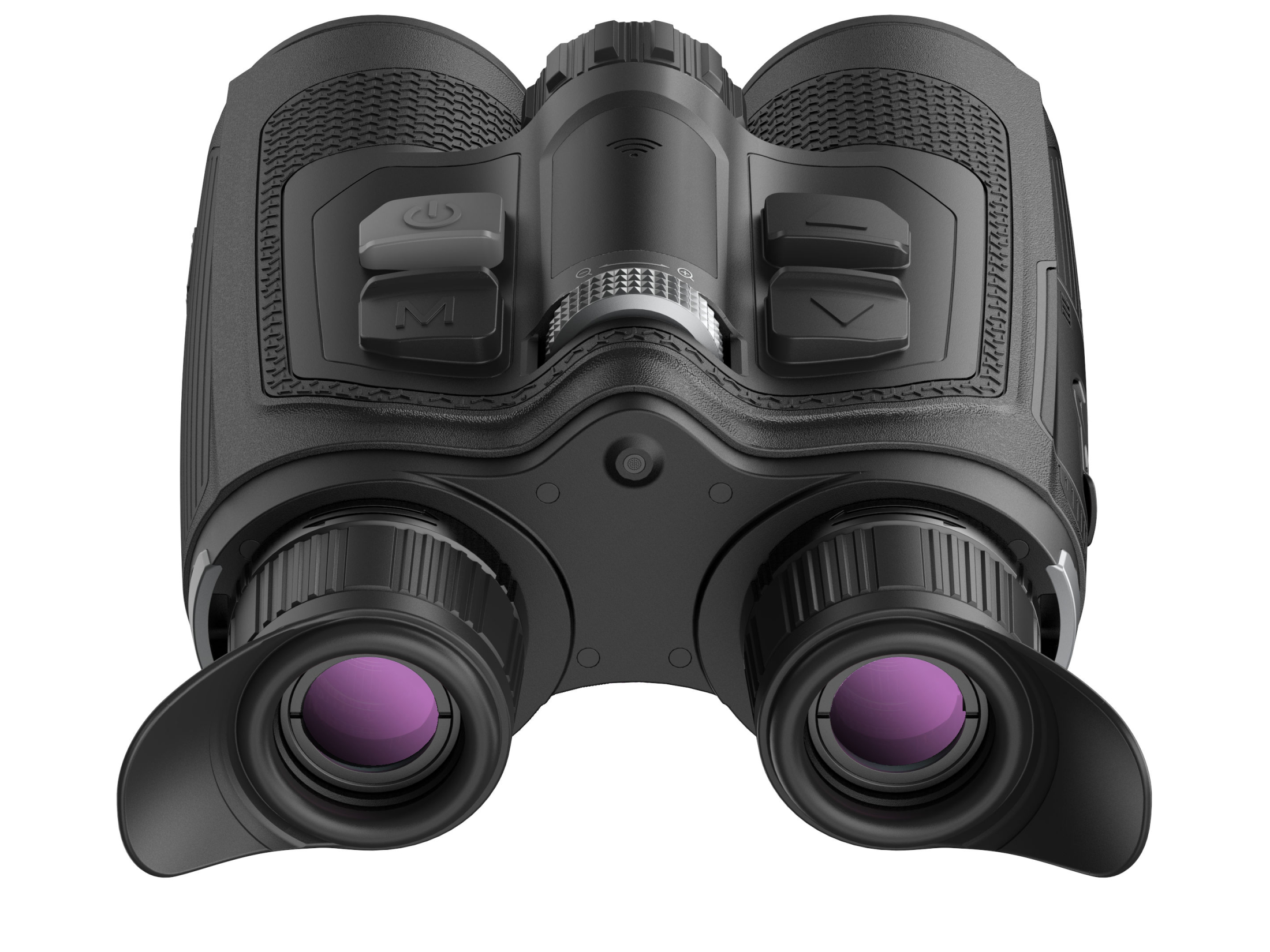

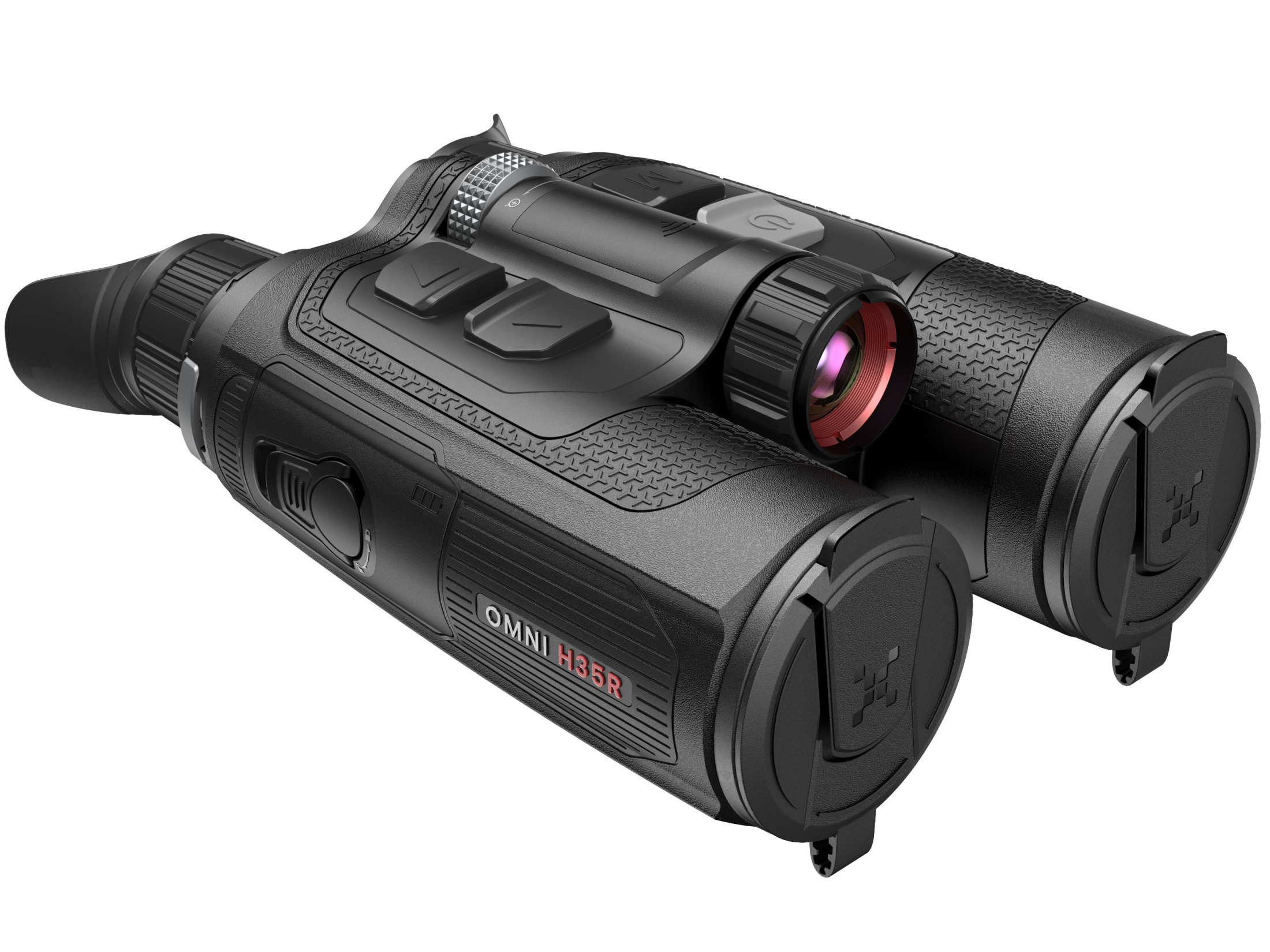

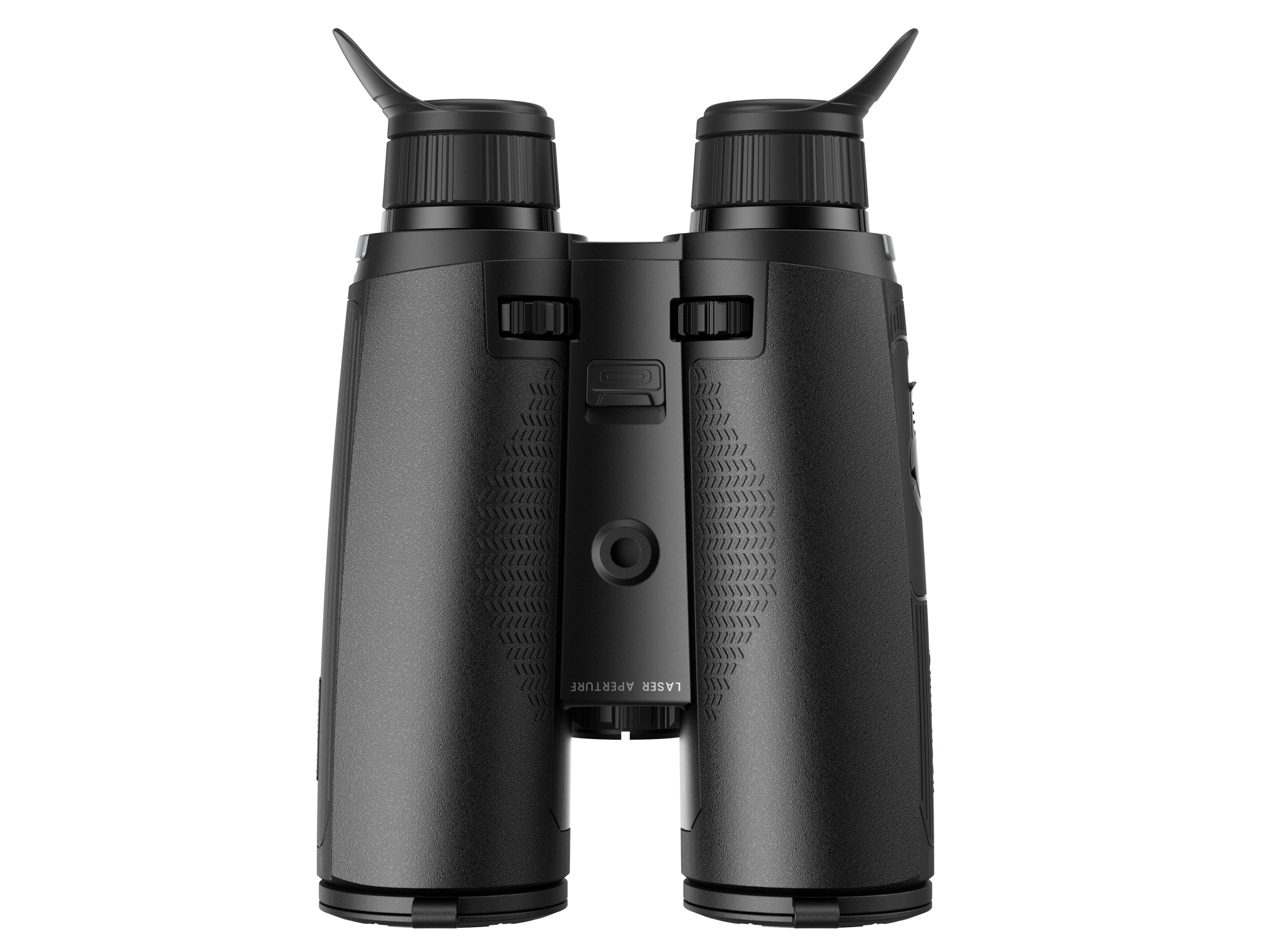

The Nocpix Omni H35R brings thermal imaging and ultra-high resolution digital vision together in one advanced binocular system. Designed for demanding observation in changing light conditions with an integrated laser rangefinder (with ballistic capabilities). The new focus system for each channel is located underneath the binocular, near the eyepiece for focus adjustment with your thumb.
Whether scanning open ground during the day, observing at dusk or detecting heat signatures after dark, the Omni H35R gives you the flexibility to switch between thermal and digital imaging at the press of a button. At the heart of the Omni H35R is the 8192 × 6144 8K sensor, delivering exceptional levels of detail for daylight, twilight and low-light observation. The onboard 850nm IR illuminator works alongside the digital sensor for high detail images in the dark. A large 1920 × 1200 AMOLED display provides a clear viewing experience and has a 12mm exit pupil providing a forgiving eye relief for comfortable viewing over long periods.
Omni H35R's 640 × 512, 12 Micron thermal sensor provides a detailed thermal view with a sensitivity of sub 15mK NETD and a 50Hz frame rate and a 35mm F0.9 thermal objective lens which provides a wide field of view, the system is designed to reveal subtle temperature differences and help you locate heat sources across challenging terrain and conditions. Nocpix specifies a thermal detection range of up to approximately 1,800m, depending on conditions and target characteristics.
The familiar binocular style chassis is made in a magnesium alloy housing and anti slip grip, providing a secure and comfortable hold during extended observation. An integrated tripod mount allows for stable viewing, while the polarity free battery compartment makes replacing compatible 18650 batteries simpler when operating in darkness. Bluetooth connectivity also allows images and video to be shared through the Nocpix app.
Nocpix Omni H35R Thermal Binoculars Specifications
Thermal Capabilities:
Thermal Sensor: 640x512 (12Micron, NETD <15mK)
Magnification Of Thermal Channel: 2x
Objective Lens: 35 F0.9
Frame Rate: 50Hz
Detection Range: 1818m
Field Of View: 12.5 x 9.4 Degrees
Digital Optical Camera Resolution: 8192x6144 @ 1.2 Micron
Magnification Of Digital Channel: 3x
Field Of View: 8.8 x 6.6 Degrees
Objective Lens: 50 F1.8
Other Specifications:
Display Resolution: 1600 x 1200 pixels
Display Type: AMOLED
Laser Range Finder: 1000m With +/-1m Accuracy
Protection: IP67
Built In Memory For Recording: 64Gb
Batteries: 2x External & replaceable 18650, 2x built-in 18650 batteries
Battery Life: 7.5 hours
Size: 198mm x 144mm x 75mm
Weight: 900g without battery
